Cloud PM8EK Eight Zone Digital Paging Mic with Analogue Interface (one required per system)
The PM Range of Paging Microphones are designed for general purpose multizone applications and can also be used with non-Cloud products.
The PM is designed to interface directly with recent Cloud products - such as the DCM1 - via the Cloud Digital Paging Interface, which uses standard CAT-5 cable and RJ45 connectors.
The PM is also co ... show more
Code: PM8EK
Brand: Cloud
Categories: Install Speakers , Paging Microphones
Item available:
The Shed Branch
Cloud PM8EK Eight Zone Digital Paging Mic with Analogue Interface (one required per system)
Share this product
The PM Range of Paging Microphones are designed for general purpose multizone applications and can also be used with non-Cloud products.
The PM is designed to interface directly with recent Cloud products - such as the DCM1 - via the Cloud Digital Paging Interface, which uses standard CAT-5 cable and RJ45 connectors.
The PM is also compatible with the older Cloud CDPM range of digital paging microphones. PM microphones and CDPM microphones may be freely intermixed on the Digital Paging Interface.
PM8EK Eight Zone Digital Paging Mic With Analogue Interface (one Required Per System) from Cloud is 100% original and brand new. We, at Melody House take pride in our after sales service and support. For further details on the PM8EK Eight Zone Digital Paging Mic With Analogue Interface (one Required Per System), Cloud, simply write to us to consult an expert or order online and we will take care of the rest. Happy Shopping!
| Capsule Type | Electret Condenser |
| Polar Pattern | Cardioid |
| Sensitivity | 68 dB ±3 dB (0 dB = 1 V/μbar @ 1 kHz) |
| Frequency response | 80 Hz to 16 kHz |
| Number of Chimes | 4 (user-selectable), with Internal Speaker |
| Number of Zones | 8 Zone |
| Digital Interface | Cloud Digital Paging Interface (RJ45) |
| Analogue Interface | 1) Zone Access Output (Short-to-Ground); 2) Audio output (balanced) |
| Current Consumption | 61 mA (idle mode), 83 mA (peak) |
| Power Input via Digital Interface | Via RJ45 Digital Paging Interface connector |

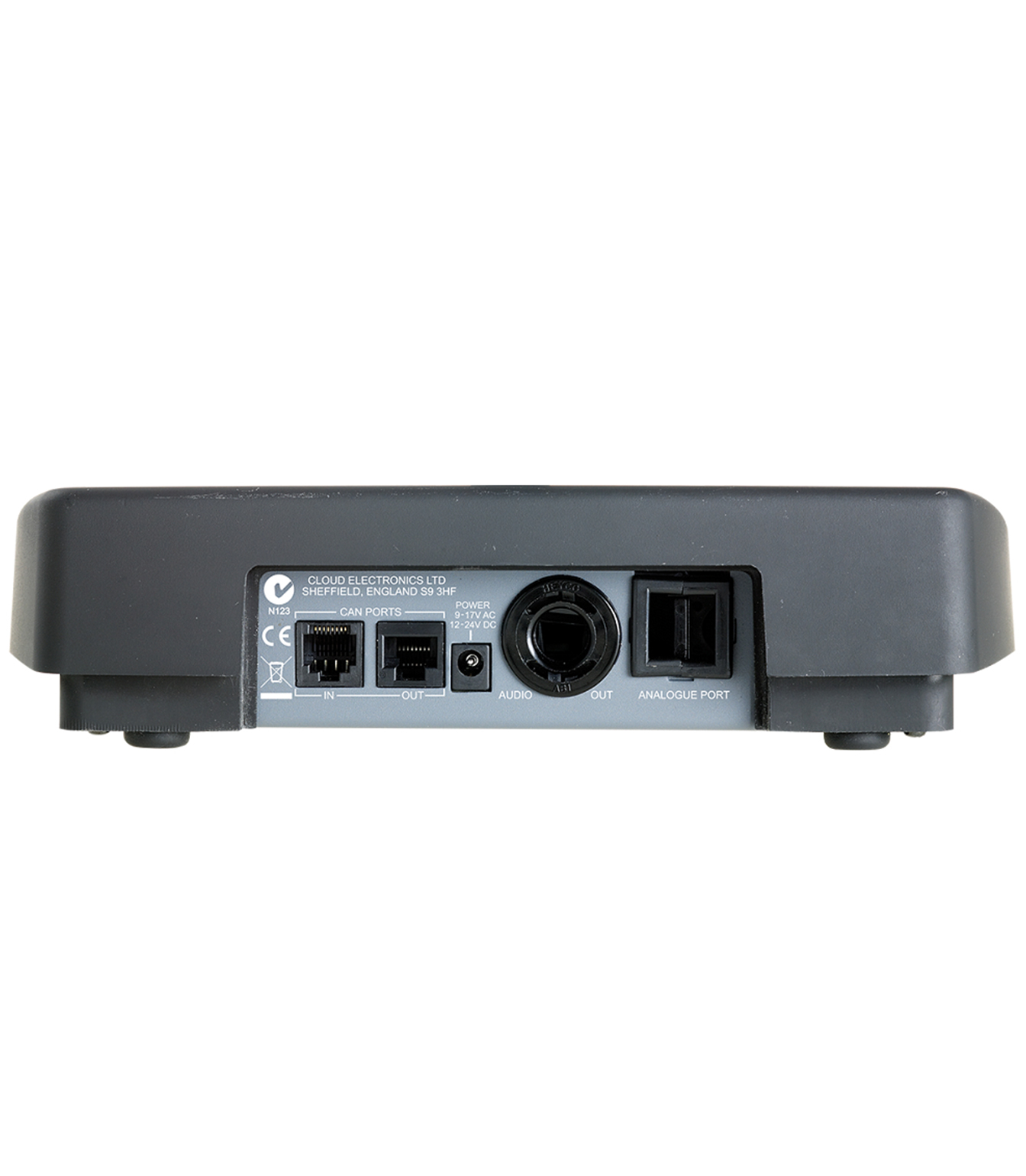

| Power Input via Analogue Interface | Via internal screw-terminal access port connector |
| Power Input Local supply | 9 - 17 VAC or 12 - 24 VDC, via rear 2.1 mm coaxial connector |
