Transducer Type | Pressure Gradient or Pure Pressure (depending on capsule) |
Polar Patterns | Cardioid, Omnidirectional, Figure of 8 (depending on capsule) |
Frequency Response | 20Hz – 20 kHz |
Sensitivity | 27 mV/Pa (+/- 10mV depending on capsule) at 1kHz (1Pa = 94dB SPL) |
Output Impedance | 50Ω |
Rate Load Impedance | Not less than 1 kΩ |
Nose Level A-Weighted | Not more than 7.5dBV – 14dBV (IEC 651) (depending on capsule) |
Maximum Output | +12dBV = 3.1 Vrms (2.5kΩ, 1% THD) |
Maximum SPL | 138dB SPL (2.5kΩ, 0.5% THD) |
Dynamic Range | 130 dB (@2.5kΩ) |
Power Requirement | +48V DC Phantom Power (IEC 268-15) (+35V min) |
Current Draw | 1.8mA (typical AI+48V) |

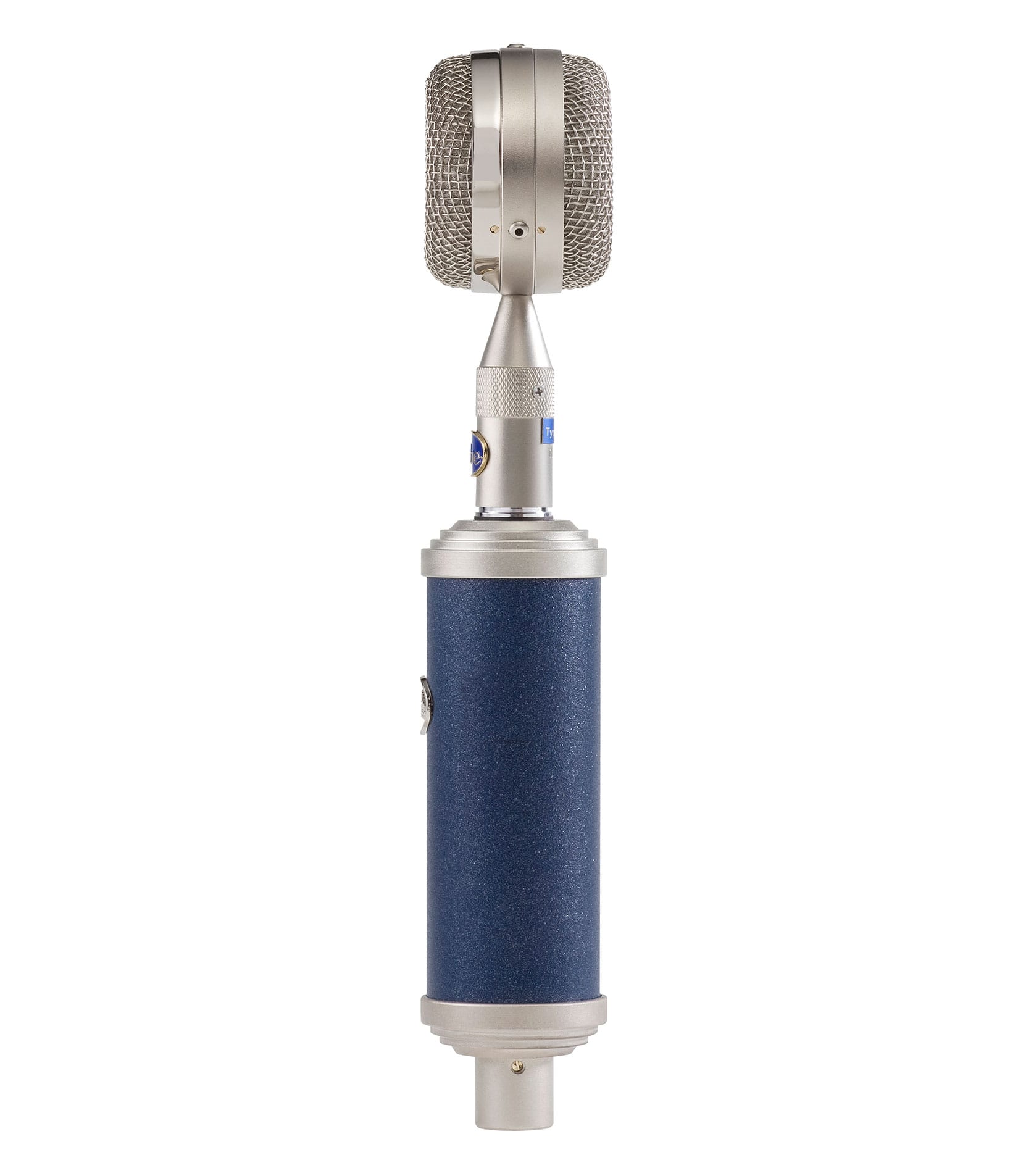

Blue Bottle Rocket Stage 1 Class A Discrete Solid State Mic, Includes B8, Shockmount & Storage Box
AED 3,087.66
AED 4,410.94
Bottle Rocket Stage 1 Class A Discrete Solid State Mic, Includes B8, Shockmount & Storage Box from Blue is 100% original and brand new. We, at Melody House take pride in our after sales service and support. For further details on the Bottle Rocket Stage 1 Class A Discrete Solid State Mic, Includes B8, Shockmount & Storage Box, Blue, simply write to us to consult an expert or order online and we will take care of the rest. Happy Shopping!
